DIY Fog and Haze: Making Atmosphere Without a $500 Fog Machine

Every horror short and every backyard lightsaber duel wants the same thing. Air the camera can see. Commercial fog machines deliver it beautifully and charge real money for the privilege, so here are four ways to get rolling fog and thin haze on a hobbyist budget, including a $25 build I’d happily put on a set again.

Updated October 2026 · 12 min read

Stand behind any working film set at dusk and you’ll notice something strange before you notice the lights. The air itself has texture. Beams from a window cut sharp white wedges across the room, a porch lamp picks out drifting streaks you’d never see on a clean day, and actors half-vanish into a soft gray depth a few yards back. That’s atmosphere, and almost none of it is free. Every method of putting particles in the air costs money or preparation or cleanup, usually some blend of all three.

I came to this the expensive way, renting a heated fog machine for a two-night garage shoot and burning close to half the budget on the rental, plus one very awkward conversation with the homeowner about her smoke detector. After wrap I started hunting for cheaper routes, and it turns out hobbyists really use four of them. Each has its own personality, price tag, and favorite way of going wrong. The classic heated fog machine is only one of the four, and it’s the one I reach for last these days.

This article walks through all of them, then builds the cheapest from parts. Stick around and you’ll know which tool fits which shot, what “hang time” actually means, and why dry ice, gorgeous as it looks, deserves your full respect.

Why Fog Costs What It Costs

Atmosphere works because light needs something to bounce off. Clean air scatters so little visible light that a lamp’s beam stays invisible until it lands on a wall, but add a few million fine droplets and the beam shows itself, edges and all. Movie people sort these droplets into two families by behavior. There’s thick, rolling fog that hugs the floor and pools in corners, and thin haze that spreads evenly through a room and only appears when light crosses it. Mixing the two up is the classic beginner mistake, because the machines behind them are entirely different animals.

A professional heated fog machine forces mineral-oil or water-glycol fluid through a hot block, somewhere in the 300 to 400 degree Celsius range, and vaporizes it on contact. The vapor shoots out, meets cooler air, and condenses into a dense white cloud. Fast, remote-controllable, fills a whole room in seconds. The downsides match the upsides: real money up front, a warm-up wait, and residue. Cheap fluid leaves an oily film on lenses and floors, which is why rental houses get twitchy about what you pour in. A mid-range unit from a maker like Chauvet DJ runs a couple hundred dollars, and the prosumer tier blows past $500 without trying. If you fog rooms every weekend, that money makes sense. Twice a year, it doesn’t, and by the third rental you’ve covered a mid-range unit.

Fog is water droplets doing what light tells them to. The only real questions are how the droplets get airborne and what they cost you once the camera stops rolling.

Which reframes the hobbyist’s question. Not “which fog machine should I buy” but “what’s the cheapest way to get visible air for this one shot, tonight.” That version opens the door to three other methods, and every one of them skips the heater.

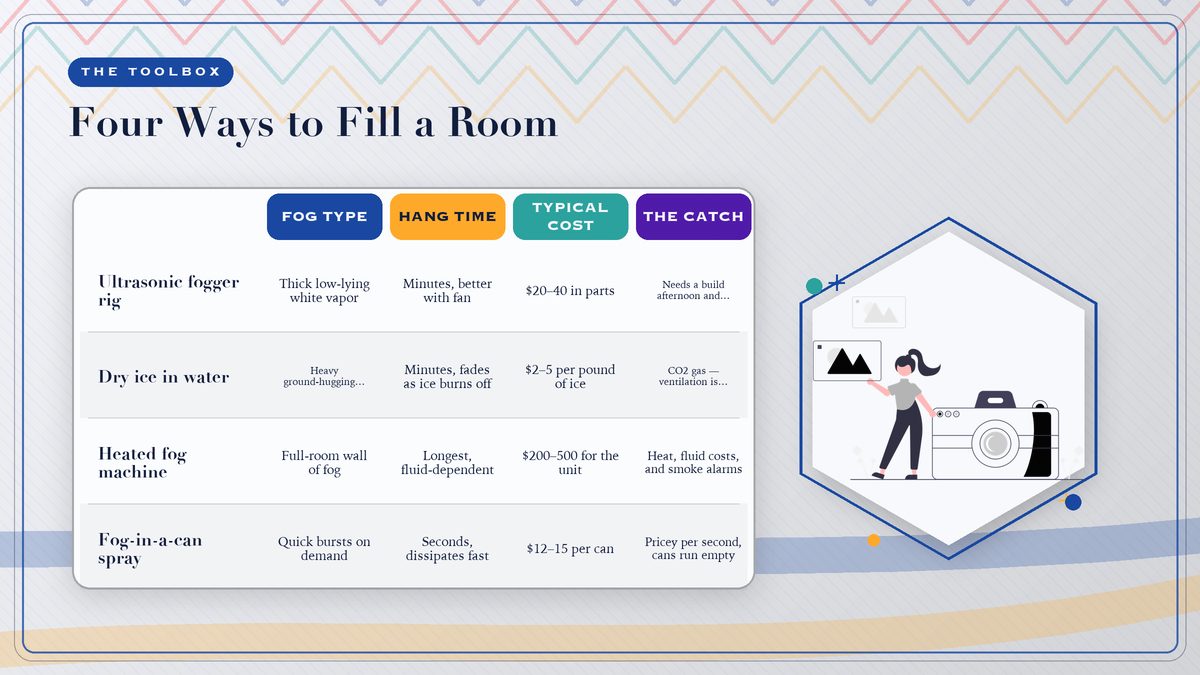

Four Ways to Fill a Room

The quick comparison before we build anything.

Strip away the branding and every DIY atmosphere method lands in one of four buckets. Two you buy ready-made, two you assemble yourself, and the price spread between cheapest and dearest is roughly a hundred to one. They stack up like this on the things a shoot actually cares about: how the fog looks, how long it hangs around, what it costs, and what it demands from you afterward.

Two columns in that table earn a closer look. Hang time is the number nobody advertises and everybody feels on set. Fog that dies in forty seconds forces you to shoot around constant re-fogging, which shreds continuity in any shot that moves. Cost per second is the sneakier column, because a $14 can sounds like pocket change until a doorway reveal eats three of them on a single take, and when that happened to me last shoot, the can ended up within about a dollar of the dry ice it was standing in for.

For most hobbyists I’d rank them ultrasonic rig first, dry ice for hero moments, can as the emergency backup living in your trunk. The heated machine only pays for itself if fog scenes come around monthly.

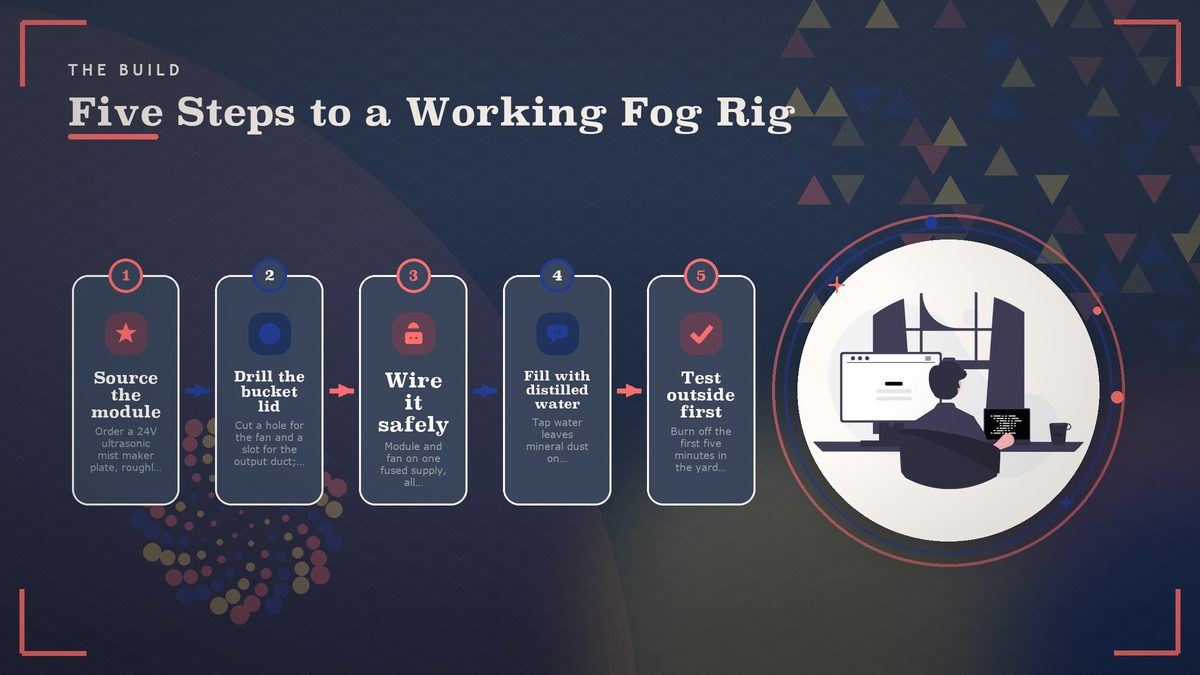

The $25 Ultrasonic Fog Rig, Built Step by Step

The build that gets you thick low fog for the price of a pizza.

The ultrasonic route borrows its engine from an unlikely place: pond fountains and decorative humidifiers. An ultrasonic mist maker is a small disc vibrating at roughly 1.7 megahertz, fast enough to shake water into a fine vapor without heating anything. With no heater there’s no burn risk or oily residue, and a wall adapter covers the power draw. The trade-off is that the mist comes out cool and dense and heavy, so it sinks and creeps along the floor instead of filling a room evenly. For graveyards and swamps and anything “cold” creeping across the ground, that’s precisely the look you want.

Your parts list is mercifully short, starting with a 24V ultrasonic mist maker plate at about $10 to $15 online. One lidded five-gallon bucket, which half of you already own. A 120mm computer fan runs around $6. Then a length of PVC pipe or a dryer hose for the output duct, a 24V DC adapter rated at 2 amps or better, plus wire and a cheap inline fuse holder. You’re out maybe $25 once shipping settles, and assembly runs five steps. Nothing exotic.

• Drill the lid for the fan. Trace the fan’s outline on the bucket lid and cut a hole slightly smaller, so the fan screws down over it and pulls air in. The fan blows across the water surface and pushes mist out your duct, and that airflow is what turns a lazy pond vapor into a fog stream with actual direction.
• Cut the output duct hole. A two-inch hole on the lid’s opposite side takes the PVC fitting or hose. Aim the duct where the fog should land, because this vapor won’t climb on its own.
• Wire the module and fan to one supply. Both want 24V DC, so they can share the adapter through a simple parallel splice. Put the fuse on the positive line near the power side, and keep every connection above the water line, sealed with heat-shrink or, at minimum, electrical tape. Mains power hanging over a bucket of water deserves your undivided attention. If any of that felt uncertain, have someone who’s comfortable with wiring check the job before you plug in.
• Fill with distilled water. Tap water works but drags mineral dust into the vapor and crusts the disc, so your fog thins within weeks. Distilled water keeps the plate clean and the output thick.
• Test outside first. Run it in the yard for ten minutes. Watch for electrical smells, duct tape letting go under pressure, and how far the fan actually throws the mist. Mine reached about eight feet on a calm night, a bit less once any breeze showed up.

One refinement separates a toy from a tool. Fog from a cool rig hugs the ground but dies against warm air, so for a long take drop a few re-freezable ice packs into the water. Colder water makes denser, heavier mist that crawls instead of floats, and a friend’s rig went from “hissing kettle” to “swamp at midnight” with that one change, at the cost of nothing but freezer space.

The whole rig draws less power than a laptop charger and fits in a grocery bag. My rental machine needed its own Pelican case.

Newcomers always ask about pouring “fog juice” into the ultrasonic rig, and the answer is don’t. Ultrasonic plates atomize plain water, while the glycol fluids are built to be vaporized by heat and gum up a disc in short order. A splash of distilled water with one drop of glycerin stretches hang time a little, though in my testing the gain was small enough that I’ve quit bothering.

Dry Ice: The Most Beautiful Mistakes Waiting to Happen

Dry ice is frozen carbon dioxide, sitting around minus 78 degrees Celsius, and dropping chunks of it into hot water produces the heaviest, most theatrical ground fog on this list. The vapor pours out of the bucket and hugs the floor, spilling over steps and door sills like something alive. Directors adore it because it reads on camera from the first frame. Safety officers adore it rather less, and on this one they’re right to hold the line.

The physics are simple enough, since the water’s heat sublimates the ice straight from solid to gas, and the CO₂, colder and denser than air, drags water vapor down with it. What leaves your bucket is mostly carbon dioxide wearing water fog as a costume, which explains both the density and the ventilation rules. In an enclosed space, concentrated CO₂ displaces oxygen, and you notice it as dizziness or a pounding headache before you’ve worked out why. Work outdoors or in rooms with real airflow, keep faces out of the lowest pooling layer, and never store dry ice in a sealed container, since sublimation pressure will burst one. Treat it like the stage pyro it functionally is.

A few notes from shoots that used it well:

• Buy the ice the same day. A five-pound bag shrinks to almost nothing in a warm car over eight hours. Keep it in a cooler wrapped with newspaper, lid loose rather than airtight, and expect to lose a pound to the universe no matter what you do.
• Hot water, wide container. A stockpot or shallow tub beats a narrow pitcher every time, because surface area controls output. Between takes, refill the hot water rather than the ice, because the water is what you’re actually running out of.
• Welders’ gloves or thick oven mitts. Brief skin contact gives you frostbite faster than intuition suggests, and tongs keep your hands out of the vapor plume, which stings the eyes.
• Expect about five minutes of glory per pound, more or less. Shotgun your takes accordingly.

One more thing people forget. Dry ice fog kills upward-facing visibility at floor level, so rehearse your blocking clean before you add any. I fogged a floor-level dolly track before rehearsing it once, and the footage was forty uninterrupted seconds of wall.

Haze vs. Fog: Two Atmospheres, Two Machines

Everything so far makes fog, the thick visible kind. But half the atmosphere in professional work is haze, and haze plays by its own rules. A haze machine outputs a far finer aerosol that spreads evenly and hangs for hours, invisible until a beam of light crosses it. Concert light rays, dusty sunbeams through blinds, the glowing rim on a silhouette in a dark room: haze doing its quiet job. The dedicated haze machine is a separate device with its own fluids, and the good ones cost more than fog machines, which stings, because the effect is subtler.

The DIY haze shortcut is cruder but gets you there. Take a tiny amount of fog from any method and hit it hard with a fan, which shreds the dense cloud into fine particles that disperse through the room instead of pooling. Give it five minutes to settle even, kill the fan, and test with a flashlight. You’re after light beams that show without the air reading smoky. If the room looks hazy to the naked eye, you’ve overshot. Back off. Haze works on the light; the eye should barely register it.

That distinction drives your shoot plan more than any gear choice, since interior dialogue scenes with window light want haze. Horror beats and dream sequences and anything sold as “cold” want fog. Beginners mix these up constantly, and it’s why so many living rooms come out looking like nightclubs instead of subtle mornings.

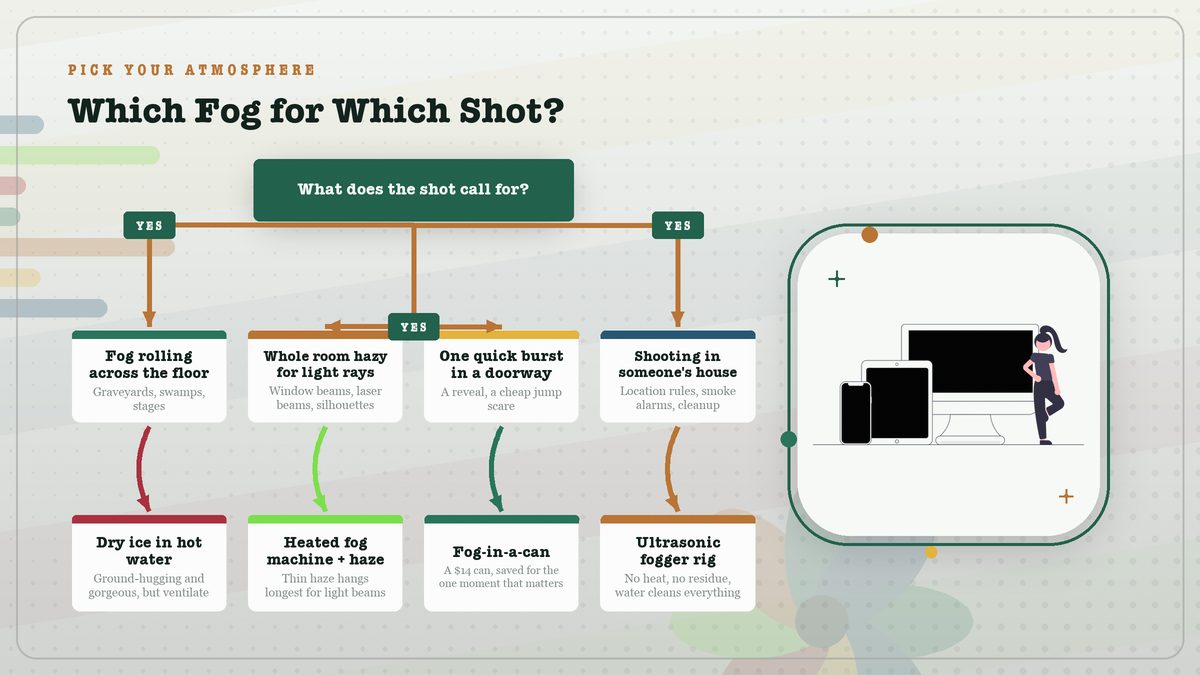

Which Fog for Which Shot?

Match the tool to the moment and you’ll never waste a take.

After a few shoots the choice stops being about money and turns into a question about the geometry of the shot. The decision logic I run through now maps almost embarrassingly well onto the four methods.

That last branch decides most hobbyist shoots, and it earns some emphasis. Filming inside someone’s house? The ultrasonic rig wins by default. No heat, no oily film on their floor, and cleanup is a towel. Heated fog fluid aerosol will find their smoke detector within about ninety seconds, and modern alarms don’t negotiate. Fog a rental hall and you explain yourself to a facilities manager. Fog your aunt’s kitchen and you explain yourself to your aunt.

I said earlier the heated machine was the one I reach for last, and I stand by that for hobby budgets, with one amendment. If your scene needs a full-room wall of fog that reads evenly from every angle, nothing cheap gets you there. The DIY rig makes floor fog, and dry ice makes floor fog with drama. Only heat fills a room top to bottom. Budget for the tool that matches the shot, then, rather than the one that’s cheapest in the catalog.

Staying Safe and Keeping the Neighbors Happy

Every method on this list leaves something behind, and planning for that is part of the shot. The ultrasonic rig leaves a damp ring around the bucket, so tape down cables and warn anyone in socks. Dry ice leaves nothing but a tub of cold water, which is honestly its best feature, though the CO₂ watch never switches off mid-shoot. Heated fog parks the entire residue question on your fluid quality, so buy the good stuff for interiors and keep the cheap jug for the yard. The can leaves a faint sweet smell that outlasts the fog by an hour.

The neighbor question runs wider than the people next door. Any shared HVAC, any hallway with a detector, any space where someone else holds a veto. Mention the fog in advance, in writing if it’s a formal location. Most owners say yes to a cool-water mist rig after thirty seconds of explanation, because it sounds like what it is, which is a fancy humidifier. Heated fog takes longer to explain and dry ice longest of all. That order tells you something about which request to make when you’re the one asking.
